Calculate number of chain links or belt teeth needed to compensate for lack of wheel adjustment space
When there is no more room for adjusting the rear wheel in the right direction,
the only option left is to alter the chain or belt length, i.e. the number of chain
links or teeth of the belt.
Suppose you want to switch your sprockets form Current (14-36) to Custom
(15-38).

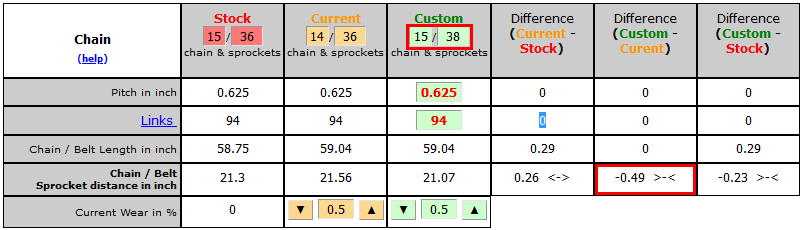

This means the following sprocket distance change:
Using the current chain, you would have to move your rear wheel 0.49 inch closer
to the front. Now lets assume the rear wheel is already at the maximum front
position. This means the only option is a longer chain. A longer chain means a
New chain for which the wear percentage is 0% (as it is new) so change
the wear percentage for Custom to 0% and start experimenting with a
longer chain: To find out how long you
will have to experiment by changing the number of links.
First try a chain with
95 links. By the way, that would not be a realistic # of links as it would require a special connection
master link due to the total number of links being odd but for this example it works:
This still means moving the rear
wheel 0.28 inch to the front which is not possible.

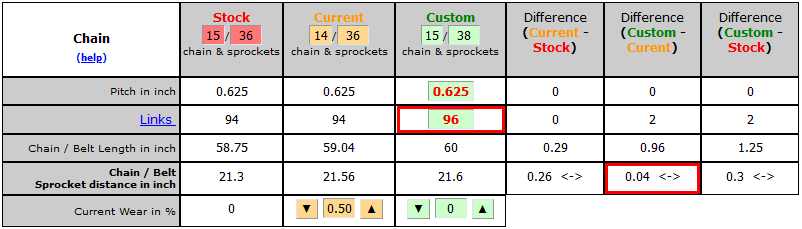

So now try a chain with 96 links:
This means moving the rear wheel 0.04 inch
backwards which IS possible ! So a chain with 96 links would be long enough for this sprocket combination.
As mentioned above, normally the minimum increase or decrease of
chain links is 2 as you
do not want to remove 1 link and replace the ends with a special connecting
master link. (So always keep the number of chain links even, this is
including the master link.)
For a belt the same calculations can be done for determining the number of teeth
needed in the new belt. For a belt the number of teeth can be
odd as a belt has no 'conection link' like a chain does.
